69HP Diesel Powered Hydraulic Power Pack

Frame Selection

Skid Frame HPU

Open Engine Fluid Power System

Hydraulic Unit Specs

  • Horsepower: 69 HP
  • Operating Pressure: 1000 - 3000 PSI
  • Hydraulic Flow: 0-40 GPM
  • Hydraulic Tank: 40 Gallons
  • Diesel Tank: 40 Gallons
  • Weight: 3200 Pounds
  • Dimensions: 48" x 78" x 65"
  • Hydraulic Oil: Application Specific

Trailer Frame HPU

69HP Trailer scaled

Hydraulic Unit Specs

  • Horsepower: 69 HP
  • Operating Pressure: 1000 - 3000 PSI
  • Hydraulic Flow: 0-40 GPM
  • Hydraulic Tank: 40 Gallons
  • Diesel Tank: 40 Gallons
  • Weight: 3800 Pounds
  • Dimensions: 144" x 75" x 84"
  • Hydraulic Oil: Application Specific
Spec Sheet

Fast Facts

  • 2250PSI @ 40 GPM
  • 2500PSI @ 35 GPM
  • 3000PSI @ 30GPM
Contact Us

Available in Three Form Factors

No matter your fluid power needs, Fast Flow has the system for you.

Open Skid
Frame

Trailer Frame

Enclosed Skid Frame

Introducing

Fast Flow's new line of standard HPUs.

Fast Flow
Fluid Power Systems

Fast Flow is manufacturing 69HP Diesel skids at full scale. These robust fluid power systems are designed to fulfill nearly any industrial pumping requirement, while also being compatible with a variety of hydraulic equipment.



New From Fast Flow Pumpsa jpg

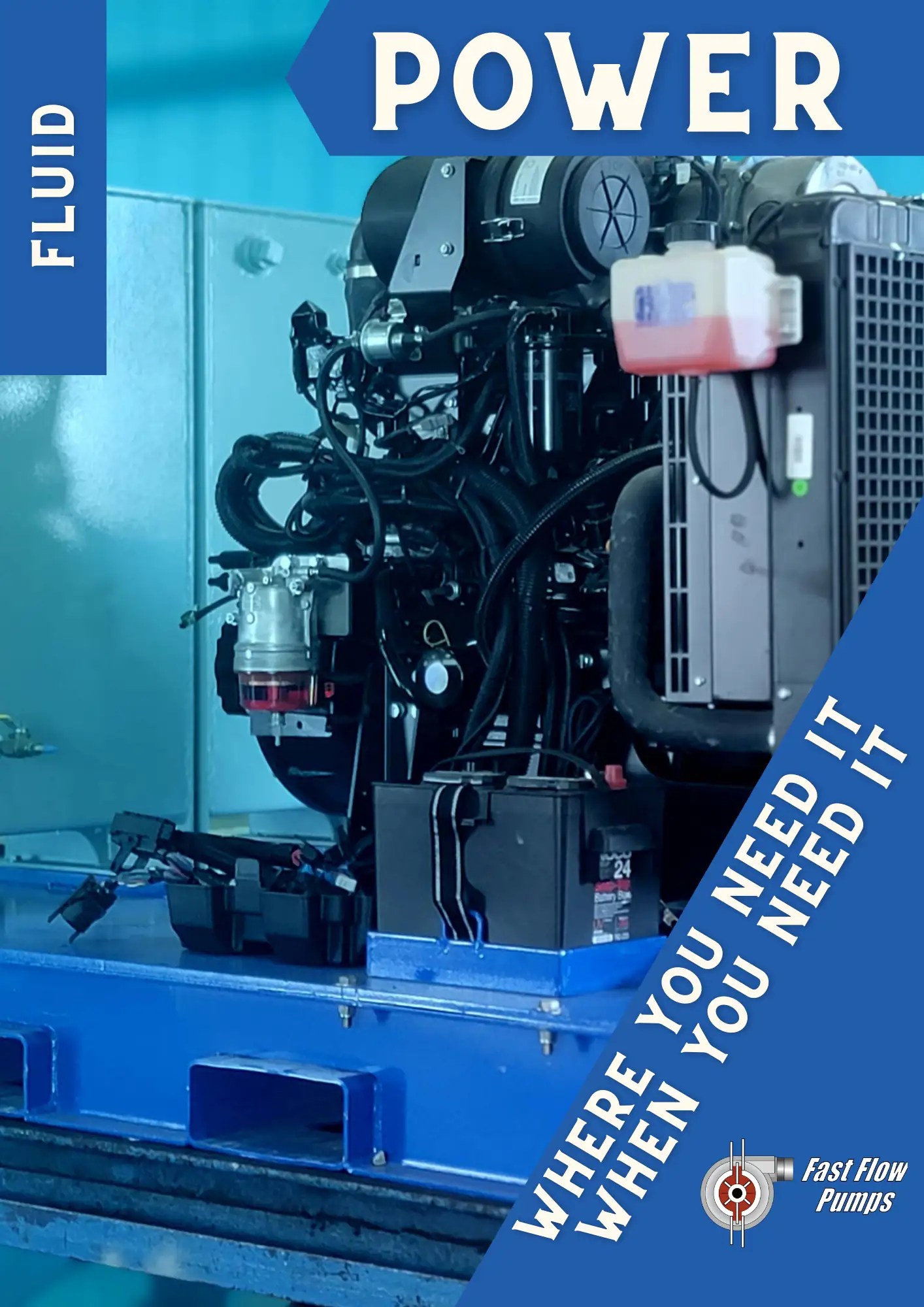

69HP Yanmar Engine Data

Engyanmar69HP

69HP Yanmar 4TNV98

  • 4 Cylinder Liquid Cooled
  • (69HP / 51KW) Output
  • 3.3 (L) Displacement
  • 2500 Max RPM
  • EPA Tier 4 Compliant
  • No Requirement for DEF Fluid

Engine Performance Curves

Yanmar 4TNV98 torque chart jpg
Yanmar 4TNV98 output chart jpg
