3" Ductile Iron Pump

Classic Hydraulic Submersible Bearing Pump

Competitive Advantages & Features

 Very High Flow Rates
High Vertical Head Pressure
Self Priming
Can be Serviced in the Field
Anti-Clog Double Suction Technology
No Mechanical Seals
Prepared for severe service pumping
Low Maintenance Design

ce-mark
Approved

Fast Facts

  • Weight: 42 Pounds
  • Material: Ductile Iron
  • Max Water Flow: 1200GPM
  • Max Vertical Head: 300 Feet
  • Operating PSI: 1500 – 3000 PSI
  • Hydraulic Flow: 5 to 20 GPM
  • Dimensions: 16″ x 10″ x 12″

FF-3D-SM Pump Curve

FF 3D SM SAE Pump Curve

Fast Facts

  • Weight: 21.7 kg
  • Material: Ductile Iron
  • Max Water Flow: 4542 LPM
  • Max Vertical Head: 91 m
  • Operating Bar: 103 – 206 Bar
  • Hydraulic Flow: 18 to 75 LPM
  • Dimensions: 41cm x 25cm x 30cm

FF-3D-SM Pump Curve

FF 3D Pump Curve jpg

Oil & Gas Pumping

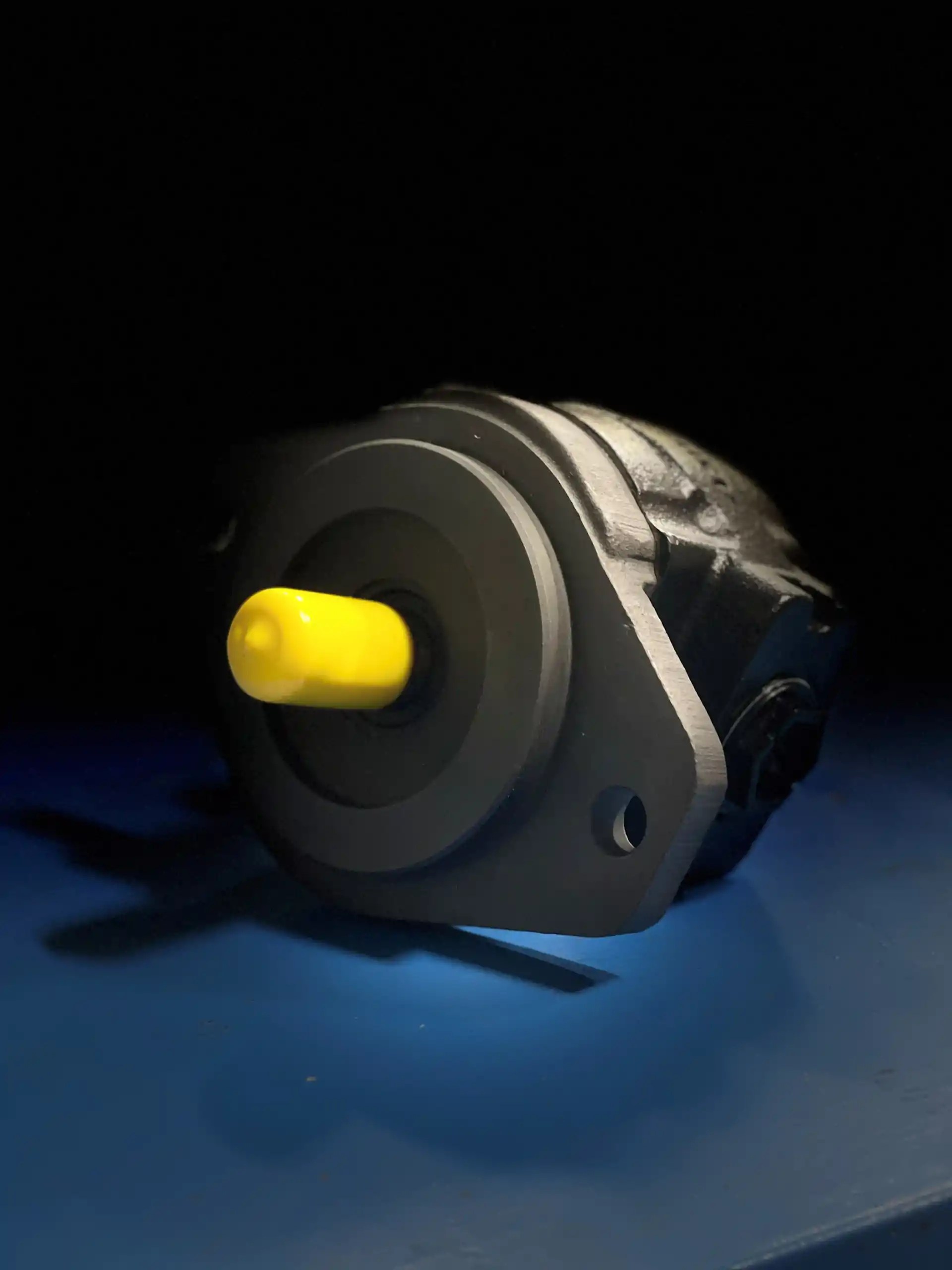

Fast Flow’s patented double suction technology produces superior flow rates and high vertical head pressures. It is the only line of submersible pumps with no mechanical seals and no internal friction, allowing the pump to run dry or gravitate. The high efficiency hydraulic motors have several advantages over electric submersibles. Next generation castings are heat treated for the pumping of abrasive solids.

Play Video

Pumping Applications

The FF-3D-SM is designed for slurry and slurry solids pumping. The applications below represent only a fraction of what this pump can do. Call our expert sales technicians at (228) 475-2468 for more information or help with finding the perfect pump for your needs.



Mud slurry pumping

Frac tank cleaning

Reserve pit pumping

Refinery tank clean outs

Heavy solids pumping

Oil spill response & skimmer

Drill mud mixing

Petroleum tank cleaning

Forestry firefighting

Sewage pumping

Irrigation aeration systems

Disaster response

Contaminated waste pumping

Salvage jetting and pumping

Agriculture pond pumping

Coal mine dewatering
